Kubernetes: Rolling Deployment

S
Sanket Jain 19th January 2020 - 4 mins read

Introduction to Kubernetes

The software industry is rapidly using containers as a way to facilitate development, deployment, and environment orchestration for Application Developers. When it comes to the deployment of the application to the Kubernetes Cluster, It becomes very complicated and tedious task. Continuous Integration and Continuous Deployment is the principle of DevOps which can be used for Kubernetes application deployment.

This explains how easy you can set up CI/CD for Kubernetes cluster by using following components:

  • Local Development Environment.
  • CI Tools. (Gitlab, Github, etc.)
  • CD Tools. (Jenkins, etc.)
  • Container Registry. (AWS ECR, Gitlab Registry, etc.)
  • Kubernetes Cluster. (AWS EKS, On-Premise Kubernetes Cluster, etc.)

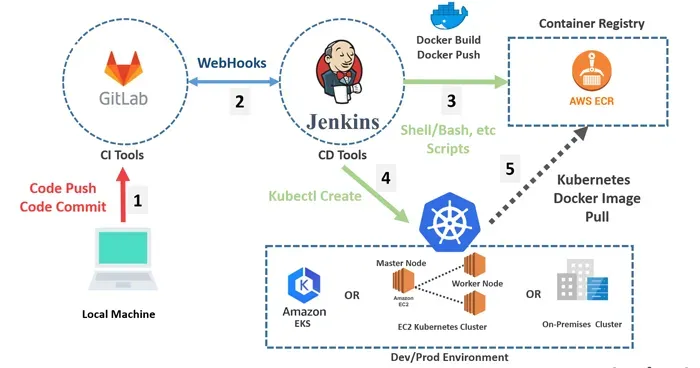

Kubernetes CI/CD Architecture

What is Continuous Integration ?

Continuous Integration is a development practice used by the developers, where each developer integrates the code into a shared repository frequently. Each integration can be verified by an automated build and automated tests using CI Tools. Developer push and commit the code to a shared/central repository.

What is Continuous Deployment ?

Continuous deployment is a strategy for software releases. where the code, which is committed by the developer passes an automated build and automated testing phase, is automatically released into the production environment, making changes that are visible to the software's users.

Steps involved in Kubernetes CI/CD

Create Production ready Application Service

  • Frontend
  • Backend

Setup CI Repository

  • Create and configure shared repository for Continuous Push, Commit, etc.Here we are using Gitlab as shared repository.

Setup CD Tool

  • Install and configure continuous deployment tools for automatic build and test. Builds are created from the Build management scripts, written inside Build Configuration. Here we are using Jenkins as CD Tool.

Setup Container Registry

  • Create central container registry such as AWS EKS or Gitlab Registry Service. CD Tools will push the container image to the central container registry.

Create Kubernetes Cluster

  • Development K8S Cluster: Use development support environment for creating Kubernetes Cluster. Eg : Minikube.
  • Cloud Native K8S Cluster Services: Use Cloud Services to create Kubernetes Cluster. Eg : AWS EKS Service.
  • On-Premise K8S Cluster: Create your own Kubernetes Cluster with the help of master and worker nodes.

Working

  • Push and commit the code to the Gitlab repository.
  • Gitlab repository will run the webhook. Webhook is the Jenkins url hit by Gitlab when it has new push.
  • Jenkins will understand that Gitlab has new code and it will take the code from Gitlab and run the Build Script or Test Scripts.
  • Jenkins will first create the docker image for application and then it will be pushed to the Container Registry.
  • Jenkins will run second task as updating Kubernetes Development Pod Image.

Advantages

  • Rapid Deployment.
  • Task Automation. Eg: Updating pod,etc.

Disadvantage

  • Kubernetes CI/CD process does not guarantee that your current processes are fully served while updating the pod image.
    Eg: Consider backend service is serving to the request made by frontend application. Backend services will take up to 3 min to process the request, within that time period if developer push any new code then backend service will terminate all the current serving requests and update the pod image.

Conclusion

We understand that Kubernetes rolling deployment is very easy with the help of CI/CD. We also acknowledged that while updating new pod image, the current requests are terminated.
